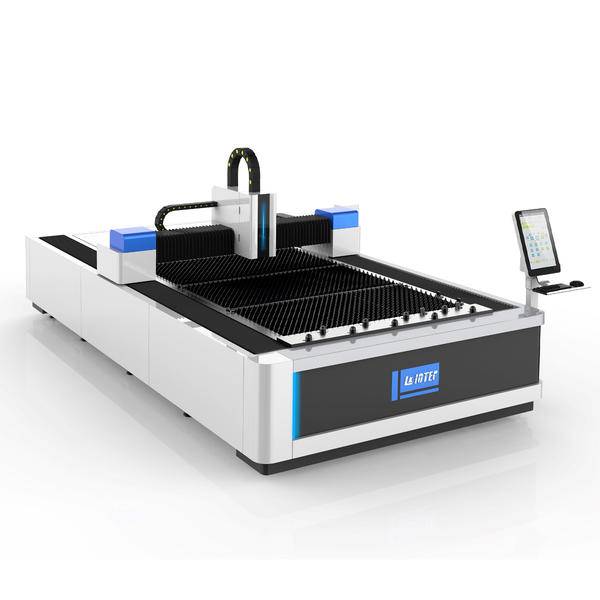

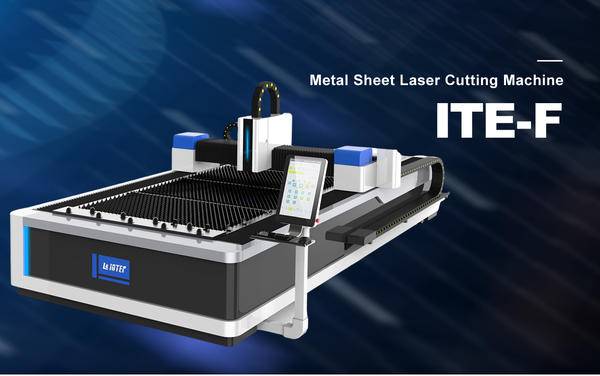

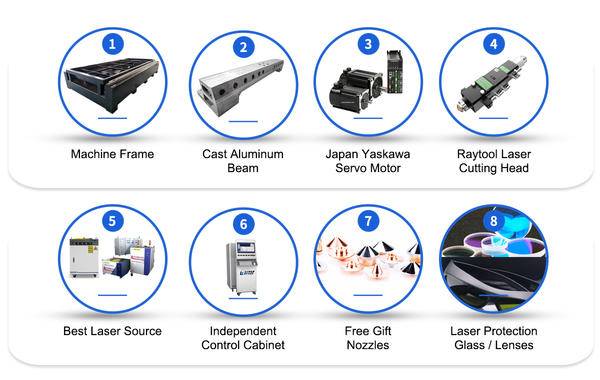

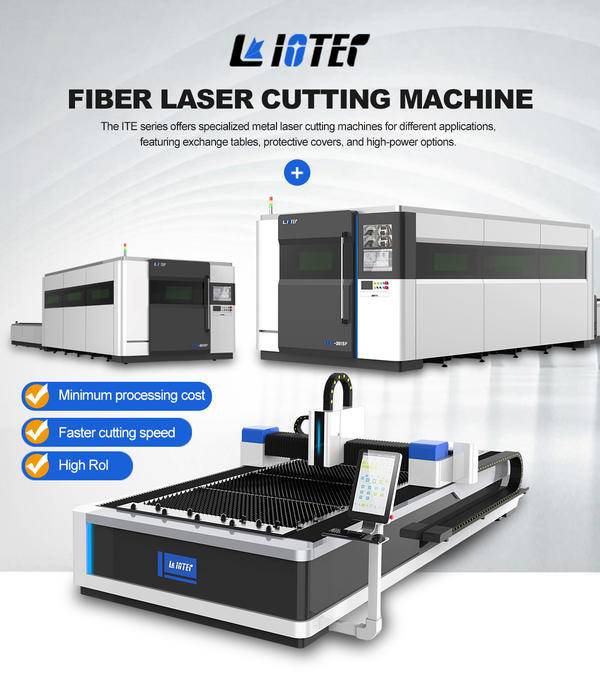

The new F1530 produced by INTER LASER has a novel appearance and reasonable design.

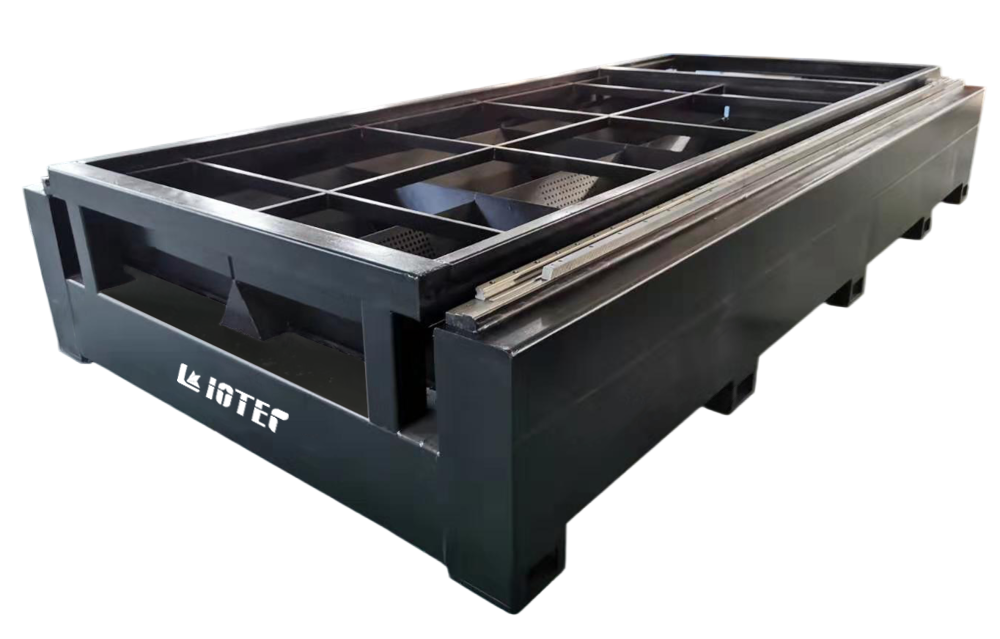

The machine body Frame is welding with 12mm thick metal sheet. After welding, 24 hour relieve stresses heat treatment in 600℃,then take it out and nature cooling 2-3 days, then process the body by Italian COLGAR milling machine.And with rough machining, precision maching and treatment.

●It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries.
●Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

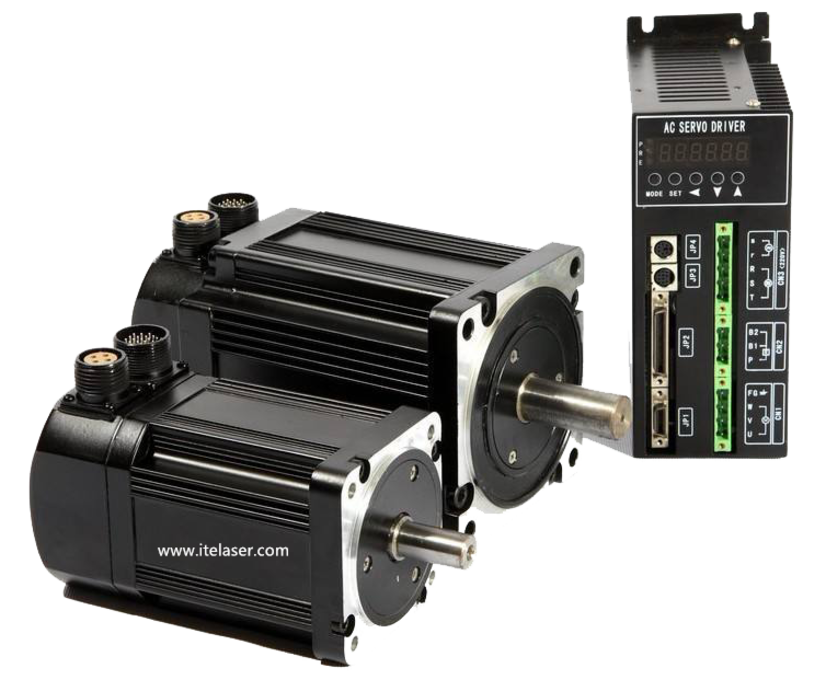

●Accuracy,overcomes the problem of stepping motor out of step;
●high speed performance, general rated speed can reach 2000~3000 rpm;
●high strong anti-overload capability, load three times the rated torque, suitable for occasions with transient load fluctuations and fast start required ;
●Stablesmooth operation at low speed,significantly reduced heat and noise.

●High stability, good cutting quality, fast perforation cutting.

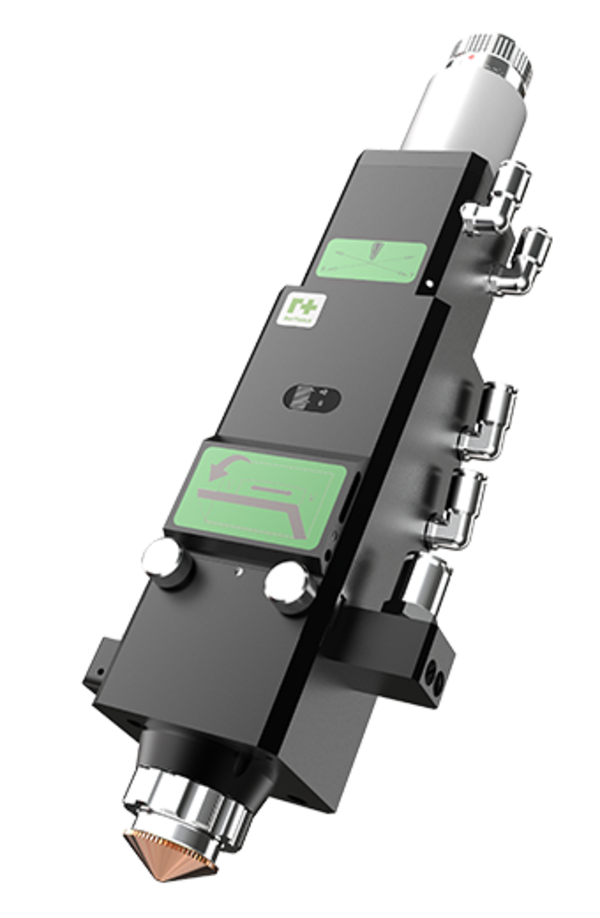

●Raytools auto focus cutting head from Swithzerland can focus automatically, free your hand,save 90% of perforation time,meanwhile increas collimation protective lens and focus, protective lens, can carefully protect key components.
●(Acemit/Lasermach/Precitec optional)

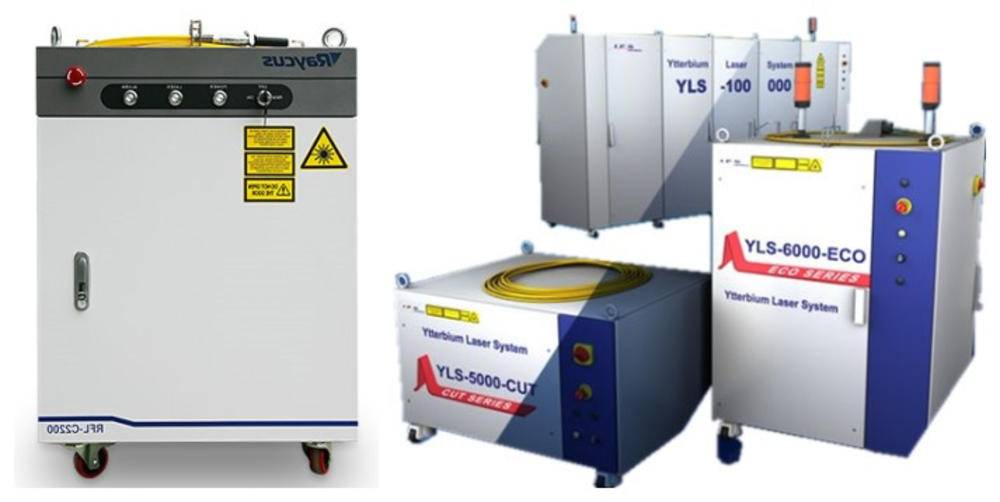

●Raycus: 500W, 700W, 1000W, 1500W, 2200W, 3300W, 4400W
●IPG: 1000W, 1500W, 2000W, 3000W, 4000W, 6000W
Differente laser power cutting different thickness metal.

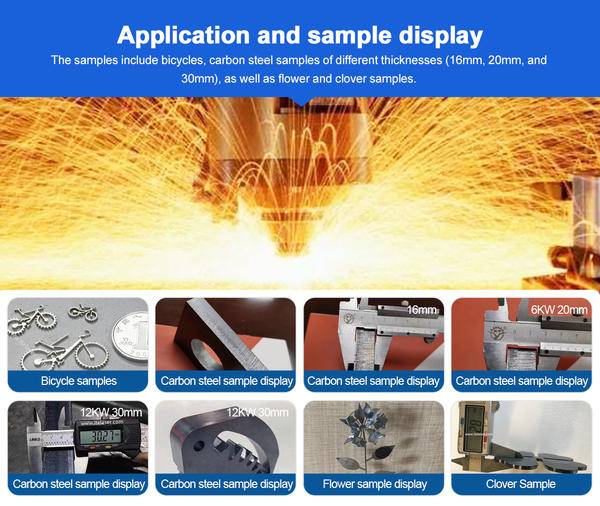

With lifetime more than 100000 hours, dedicated to cutting 0.5-25mm carbon steel plate,0.5-16mm stainless steel plate,galvanized sheet, electrolytic plate, 0.5-16mm aluminum alloy, 0.5-10mm brass and copper, etc.
●(Maxiphotonics/Nlight optional)

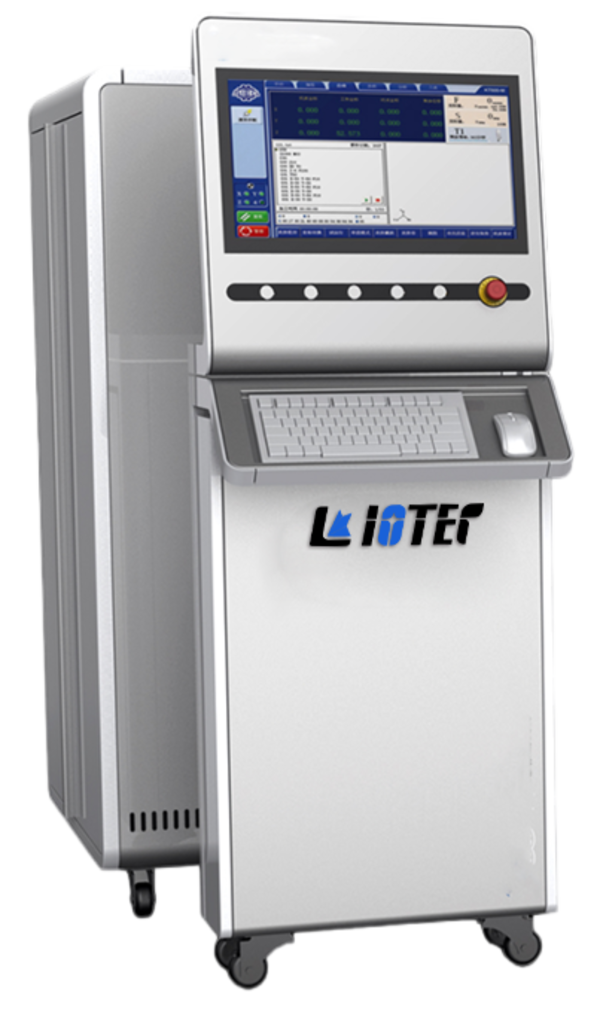

All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.What’s more，when the motor fails, it is very convenient and quick to perform fault detection and fault diagnosis.

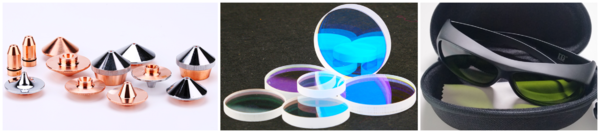

Laser protective glasses prevent or reduce laser damage to the human eye.
Laser protection lenses and nozzles are enough to meet your replacement needs. You don't need to purchase additional parts for later replacement and maintenance, saving your wearing parts replacement costs.
