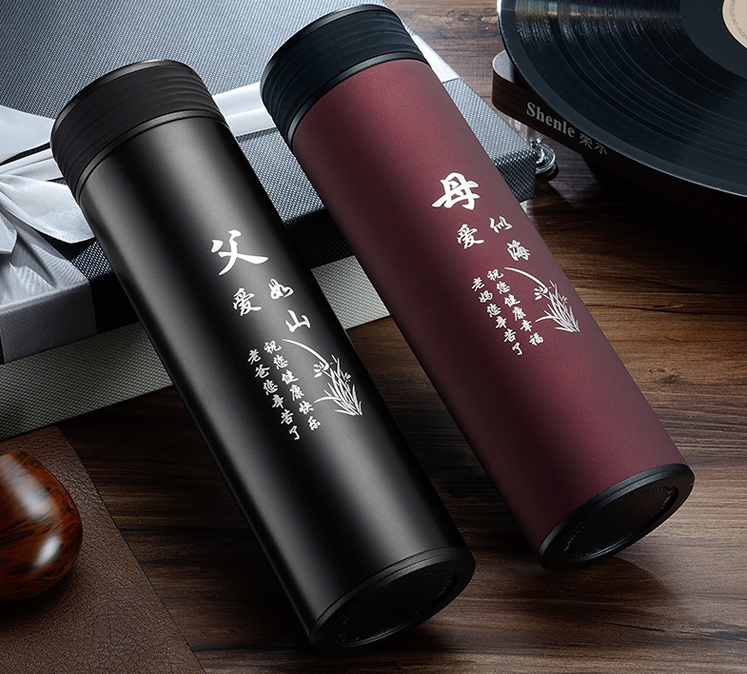

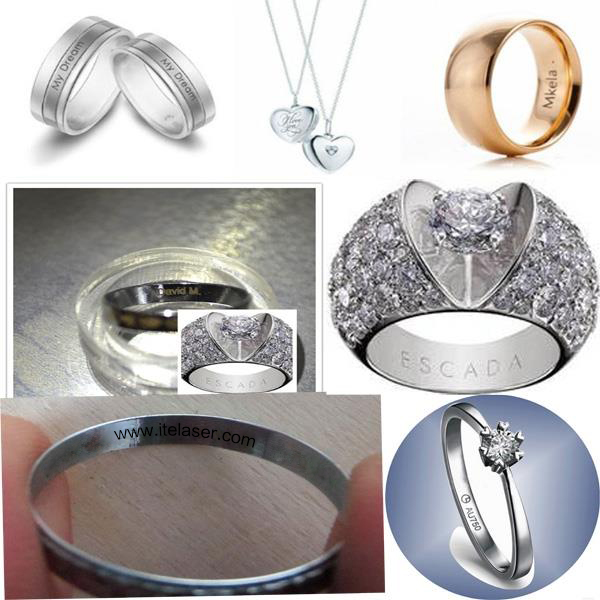

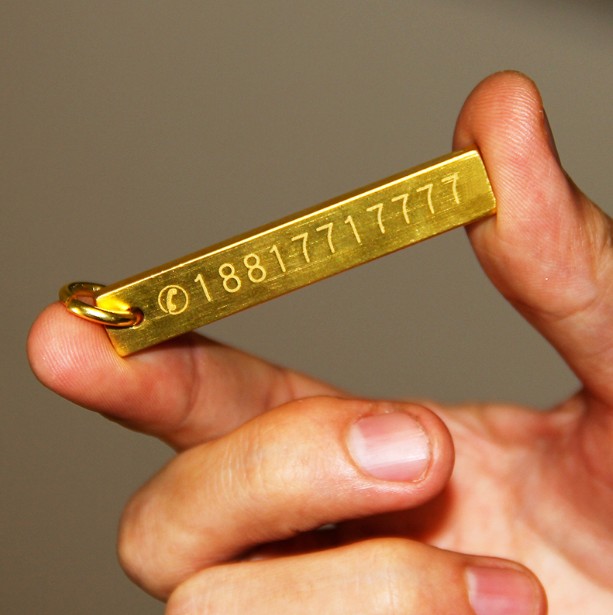

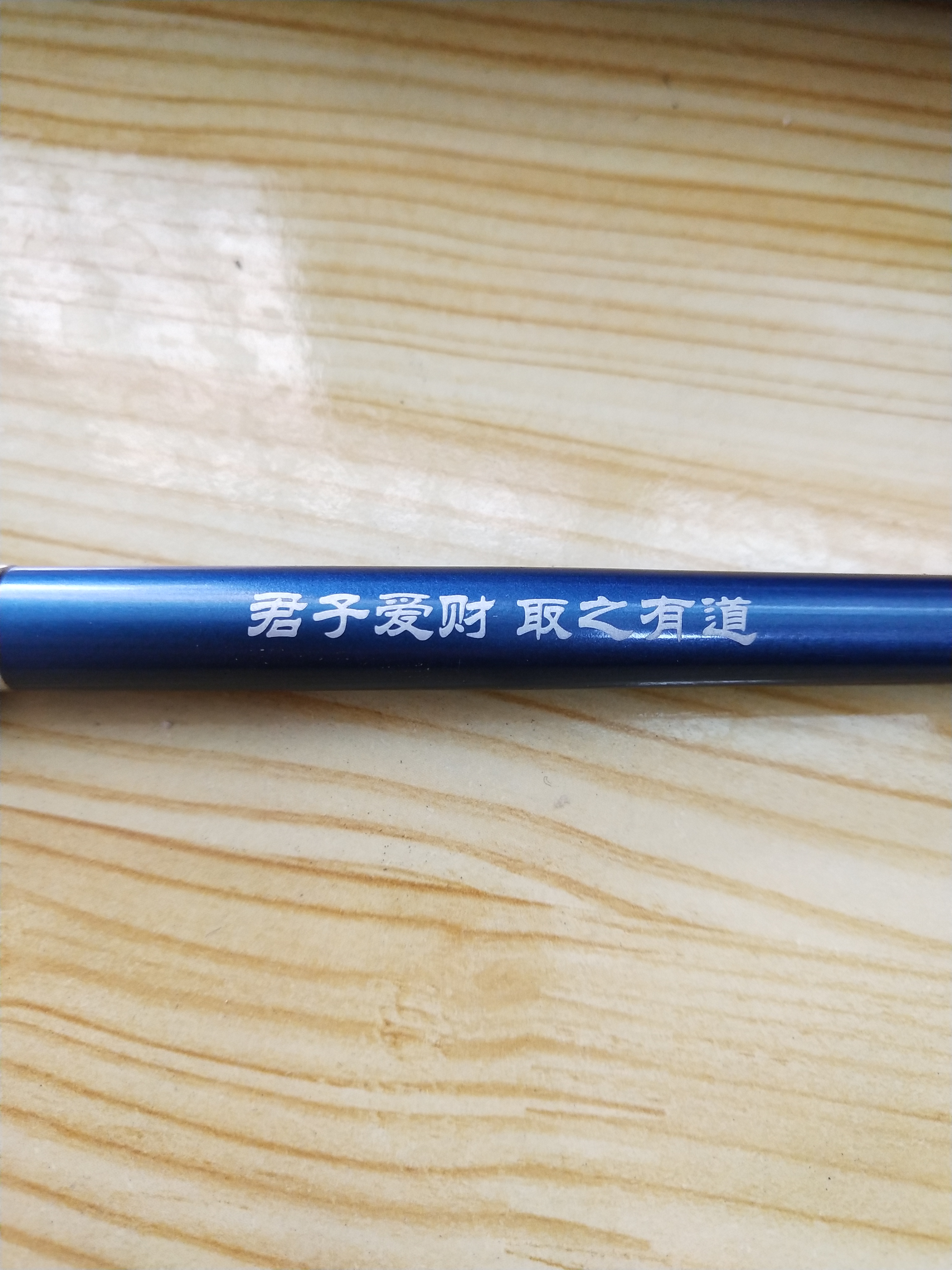

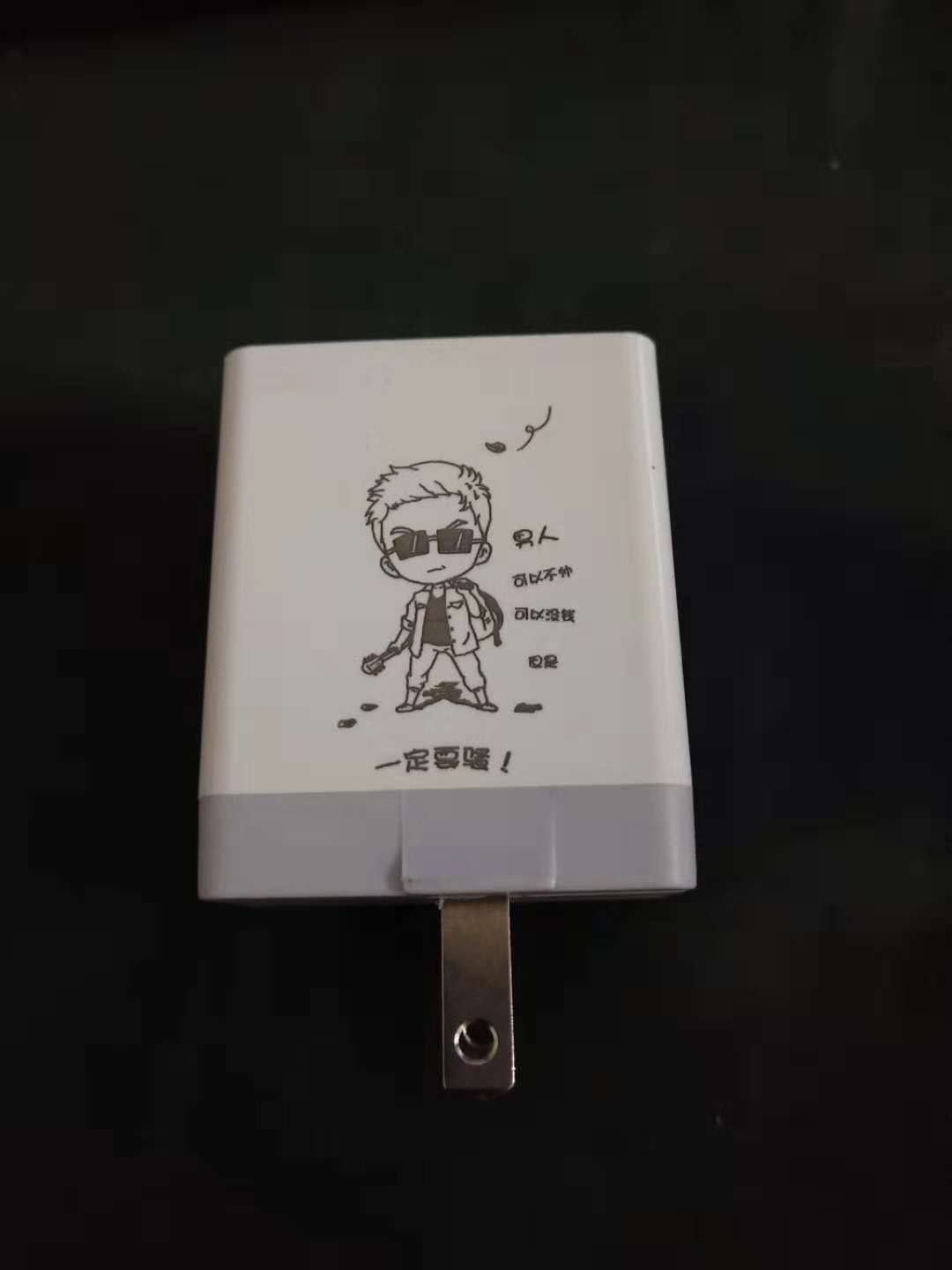

Applications:

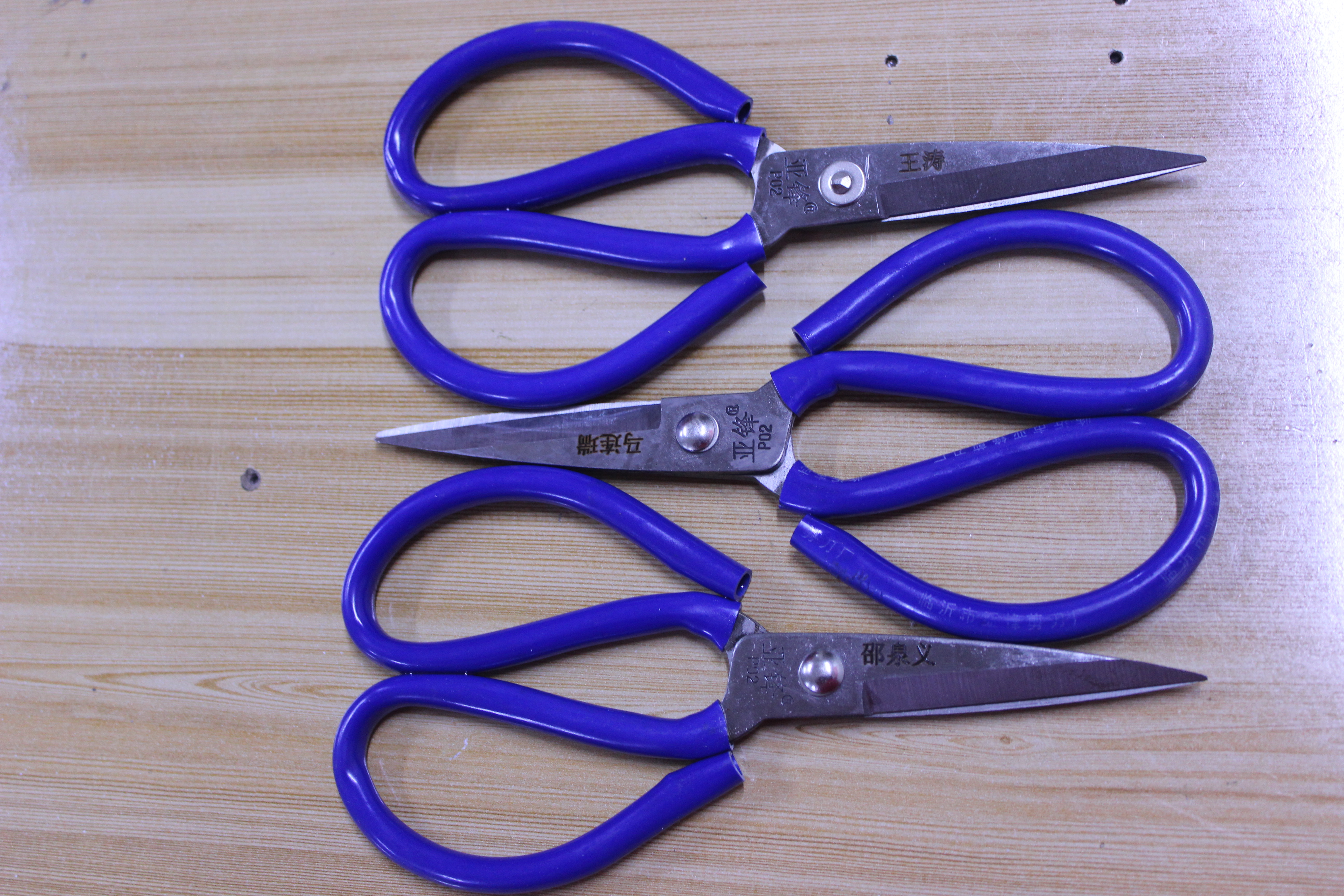

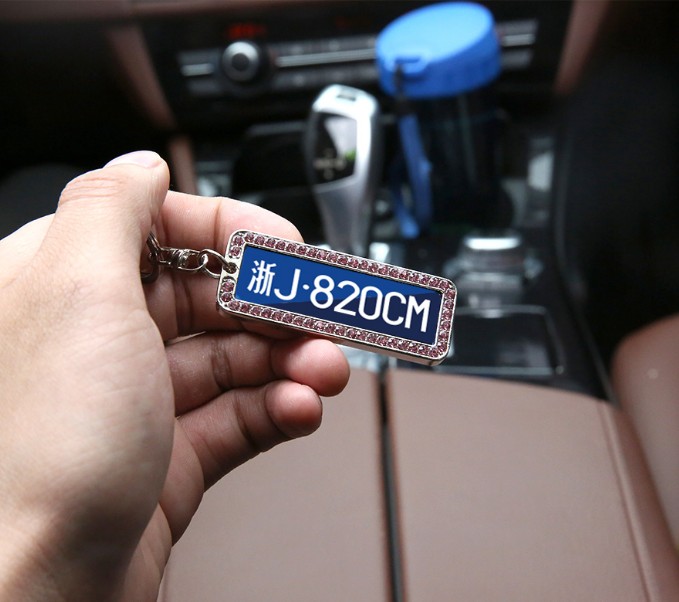

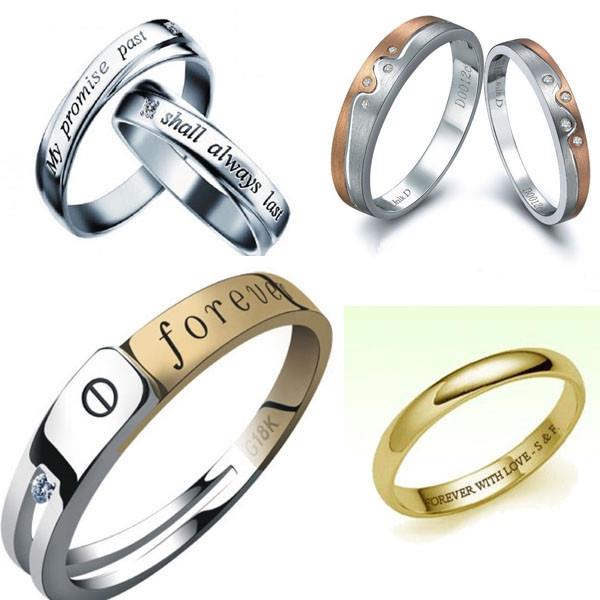

Mobile phone keyboard,plastic translucent keys,electronic components, integrated circuits, electrical appliance, sanitary ware,accessories,communication products,knives,eyeglass and clocks,jewelry,auto parts, cooking utensils,stainless steel products.ITM-FS SEPARATE FIBER MARKING MACHINE
Model | ITM-FS |
Laser Power | 10W 20W 30W |
Laser wavelength | 1064nm±10nm |
Q-frequency | 20KHz~100KHz |
Divergence | 0.3mard |
Marking range | 110*110mm / 150*150mm / 300*300mm |
Minimum line width | 0.01mm |
Minimum character | 0.1mm |
Marking speed | 10000mm/s |
Marking depth | 0~0.5mm |
Engraving line speed | ≤ 7000mm/s |
Repeatability accuracy | ±0.001mm |
Beam quality | M2:1.2~1.8 |
Marking format | Graphics, text, bar codes, two dimensional code, automatically marking date, batch number, serial Number, frequency, etc |
Graphic format supported | bmp, jpg, gif, tga, png, tif, ai, dxf, dst, plt, etc |
Working voltage | 220V±10% / 50Hz/4A |
Unit power | < 0.5kw |
Use of the environment | Clean and dust free or dust less |
Working condition:Humidity | Free of condensed water |
Laser module life | > 100000hours |
Advantages in product details
|

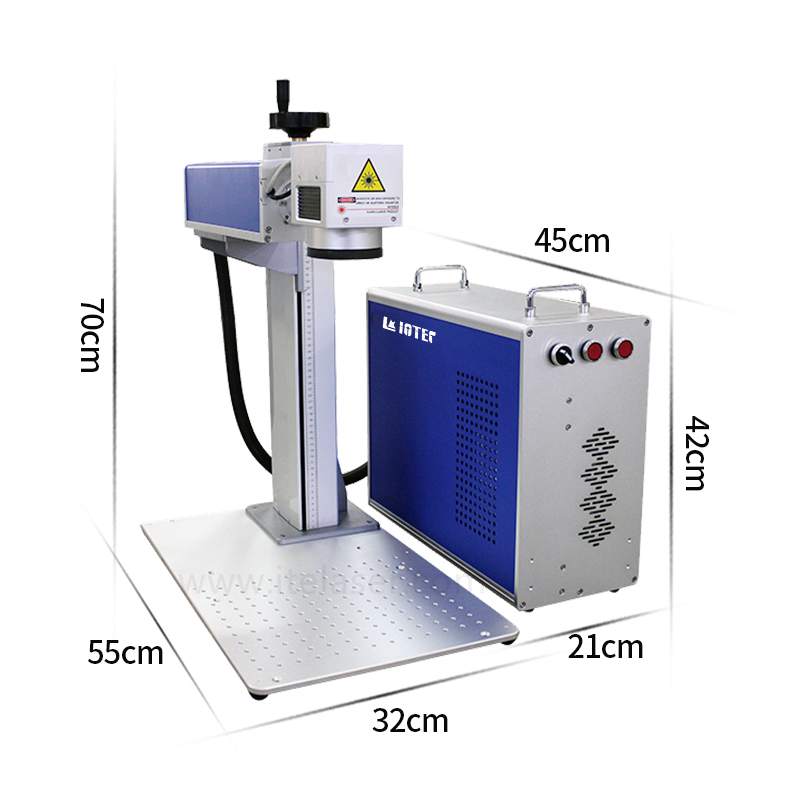

ITM-FS SEPARATE FIBER MARKING MACHINE FORMAT The separate laser marking machine uses a separate platform to increase product flexibility, which facilitates separate marking. It is very convenient, flexible and takes up less space. The new lifting column and dual red light autofocus function enable precise positioning and marking of products.
|
|
|

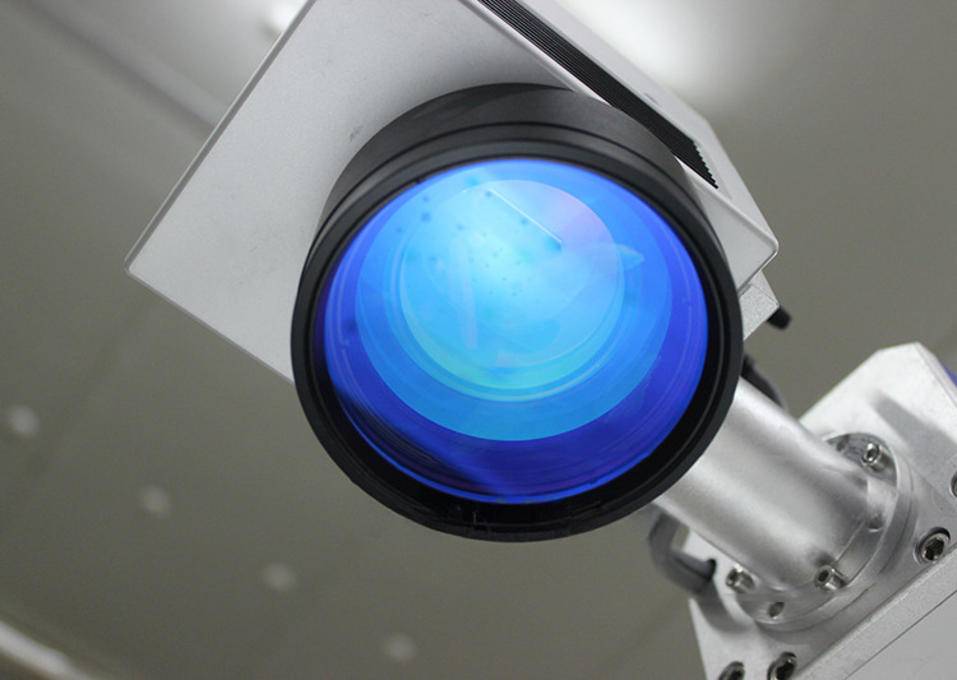

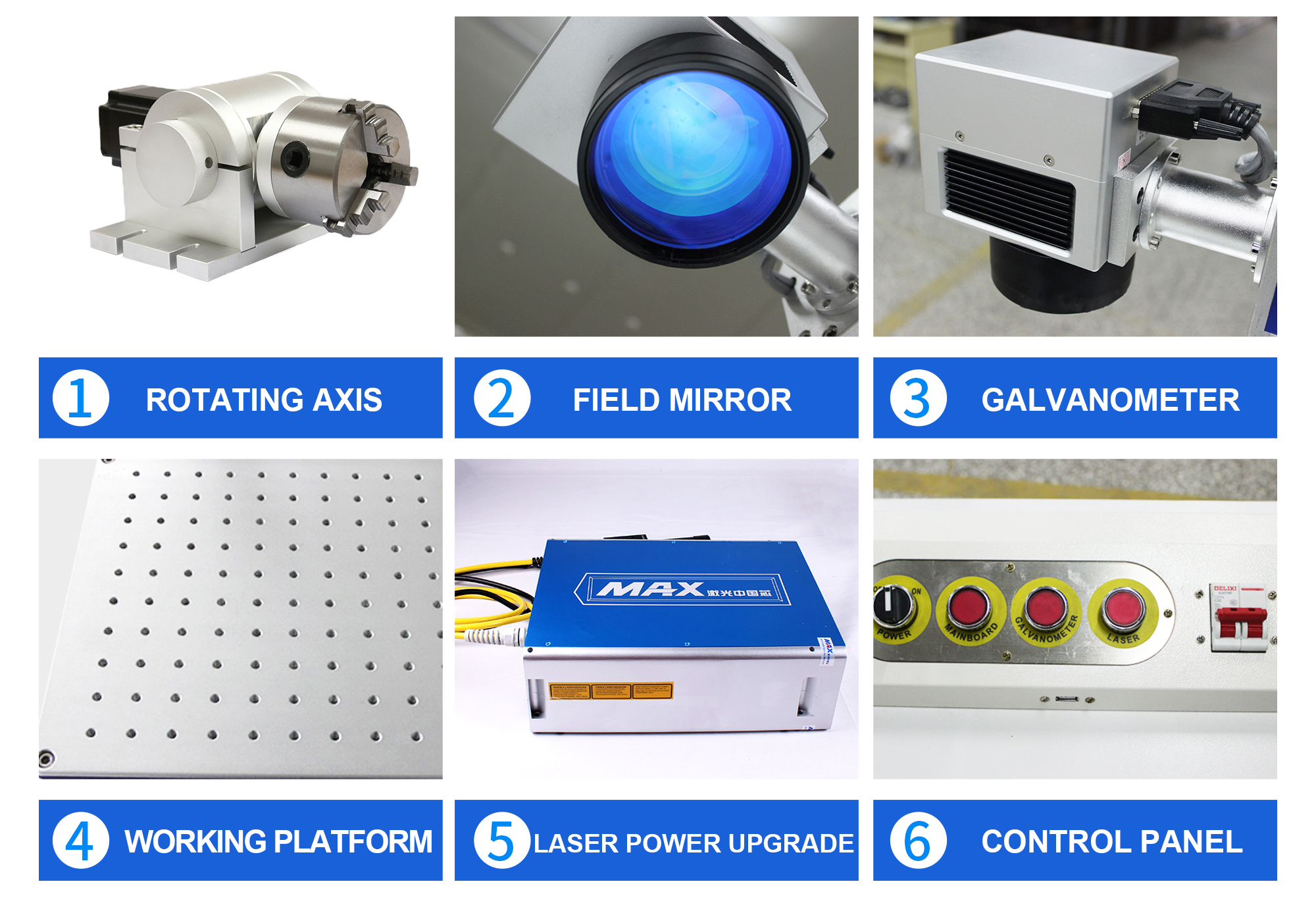

FIELD MIRROR |
|

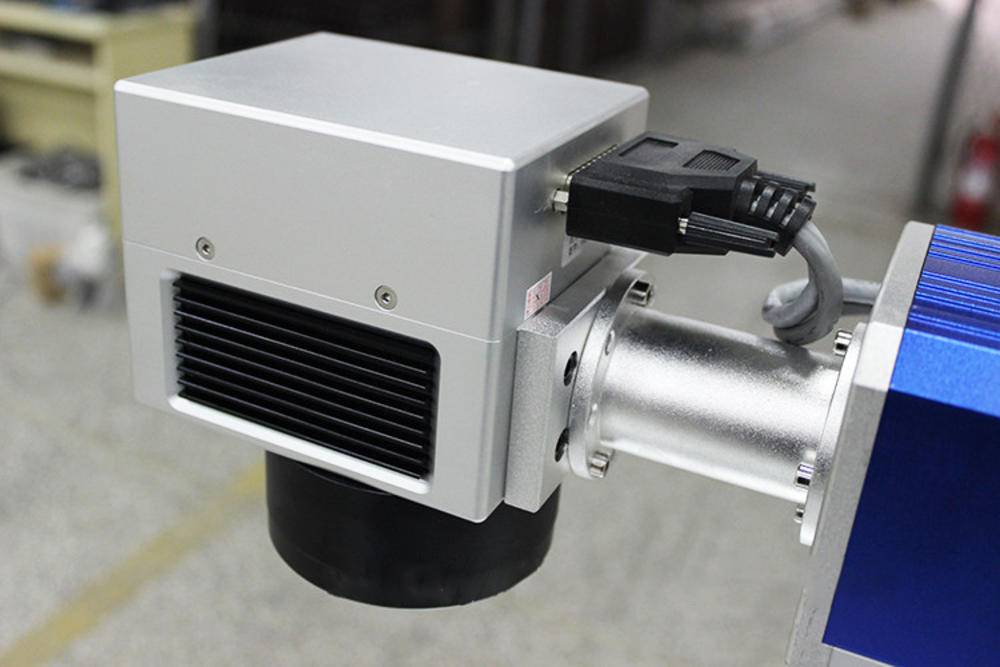

GALVANOMETER |
|
|

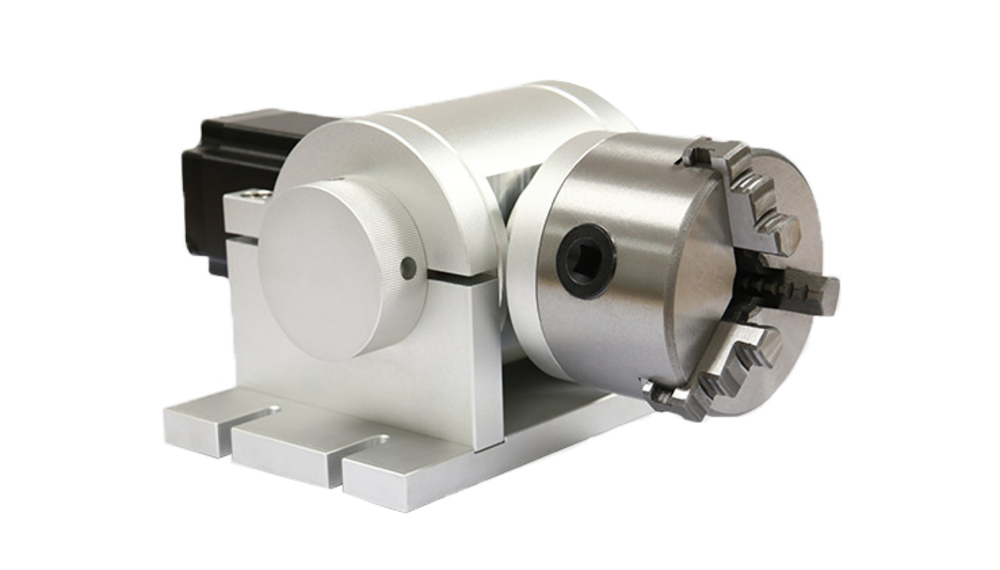

ROTATING AXIS |
|

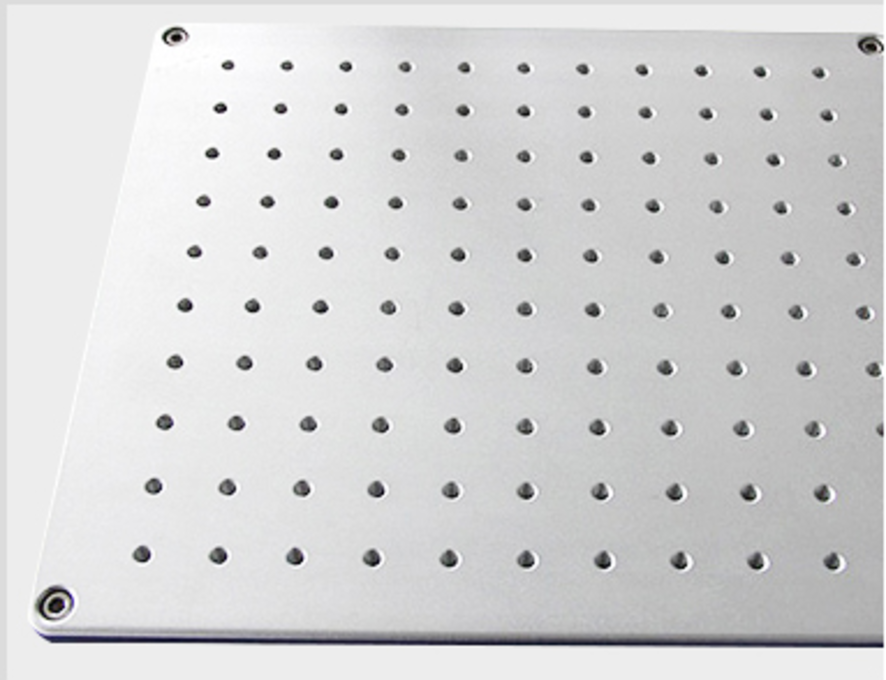

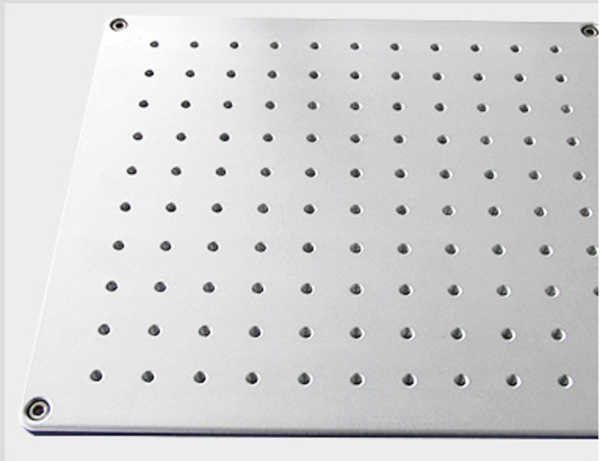

WORKING PLATFORM (PROFESSIONAL AND FLEXIBLE) |
|
|

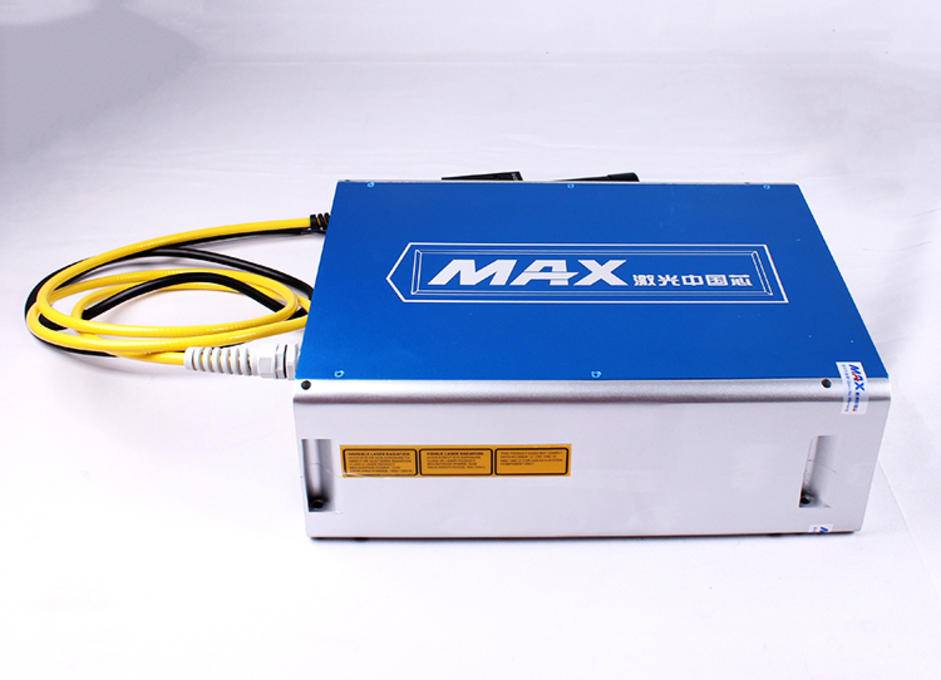

LASER POWER UPGRADE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
