Portable Fiber Laser Marking Machine For Metal
| Small metal engraving machine Parameter |
| 1 | Wave length of laser | 1064nm |
| 2 | Laser repetition frequency | 20W-30W 30kHz~60kHz 50W 50-100 HZ 100W 200W 20-200HZ |
| 3 | Laser power | 20W/30W/40W/50W/100W |
| 4 | Marking Area | 70*70mm/110*110mm/150*150mm/200*200mm |
| 5 | Minimum Line Width | 0.06mm |
| 6 | Control system | EZCAD |
| 7 | Minimum Character | 0.2 mm |
| 8 | Marking speed | 6000-12000mm/s |
| 10 | Power Supply | AC220±10% 50Hz / AC110±10% 60Hz |
| 11 | Support format | PLT, BMP, DXF, JPG, TIF, AI etc |
| 12 | Power Consumption | 500W-2000W |
| 13 | Marking Depth | Depend on your material |
| 14 | Operating System | Windows Systems |
| 15 | Marking Head | SINOGALVO or OUYA |
| 16 | Net weight | 21.5 kg |
| 17 | Transport Packing weight | 30 kg |

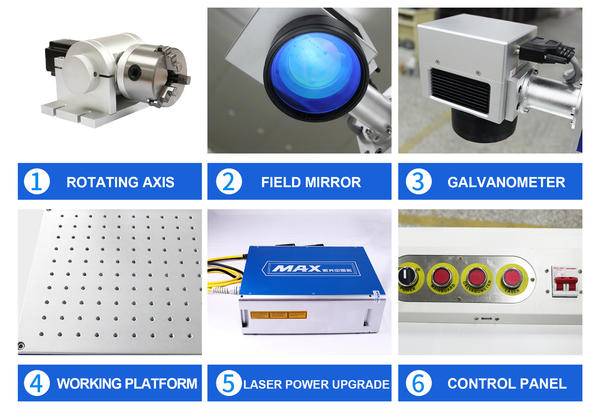

Advantages in product details
