Applications:
Wood , acrylic, MDF, plastic, leather, paper, bamboo, stainless steel, carbon steel, iron and other different materials.ITE-N Co2 máquina de corte por grabado láser normal
Model | ITE-1060N | ITE-1390N | ITE-1610N | ITE-1812N | Option |
Working area | 1000*600mm | 1300*900mm | 1600*1000mm | 1800*1200mm | According to demands |
Laser power | 60w/80w/100w/130w//150w/180w | ||||
Laser type | CO2 Sealed laser tube , 10.6μm | ||||
Cooling type | Water cooling | ||||
Engraving speed | 0-60000mm/min | ||||
Cutting speed | 0-40000mm/min | ||||
Laser output control | 0-100% set by software | ||||
Min. engraving size | Chinese: 2.0mm*2.0mm, English letter: 1.0mm*1.0mm | ||||
Highest scanning precision | 4000DPI | ||||
Locating accuracy | ≤+0.01mm | ||||
Controlling software | DSP control system | ||||
Graphic format supported | DST PLT BMP DXF DWG AI LAS,etc | ||||
Compatible software | CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc. | ||||
Color separation | yes | ||||
Drive system | High-precision 3-phase stepper motor | ||||
Auxiliary equipments | Exhaust fan and air exhaust pipe | ||||
Power supply | AC110V/220V+10%,50HZ/60HZ | ||||
Working environment | Temperature:0-45C,Humidity 5-95%(No condensate water) | ||||
Option | Rotary device | ||||
Advantages in product details
|

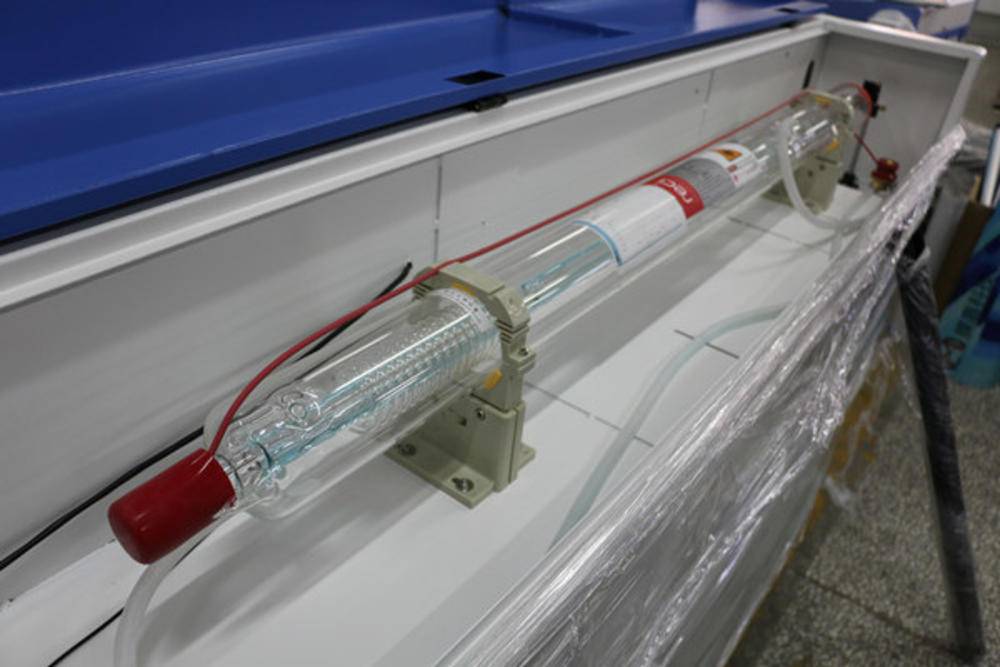

SOPORTES DE TUBO LÁSER AJUSTABLES |
|

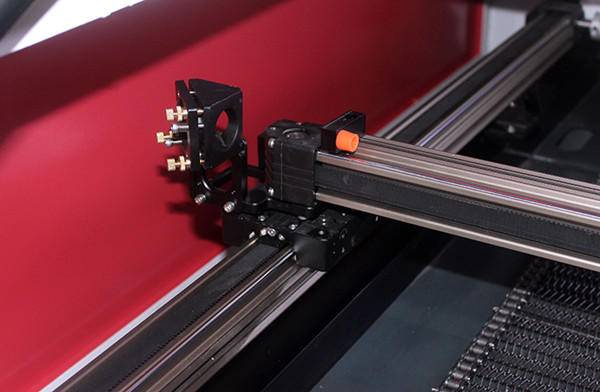

RIEL CUADRADO DE TAIWÁN |
|
|

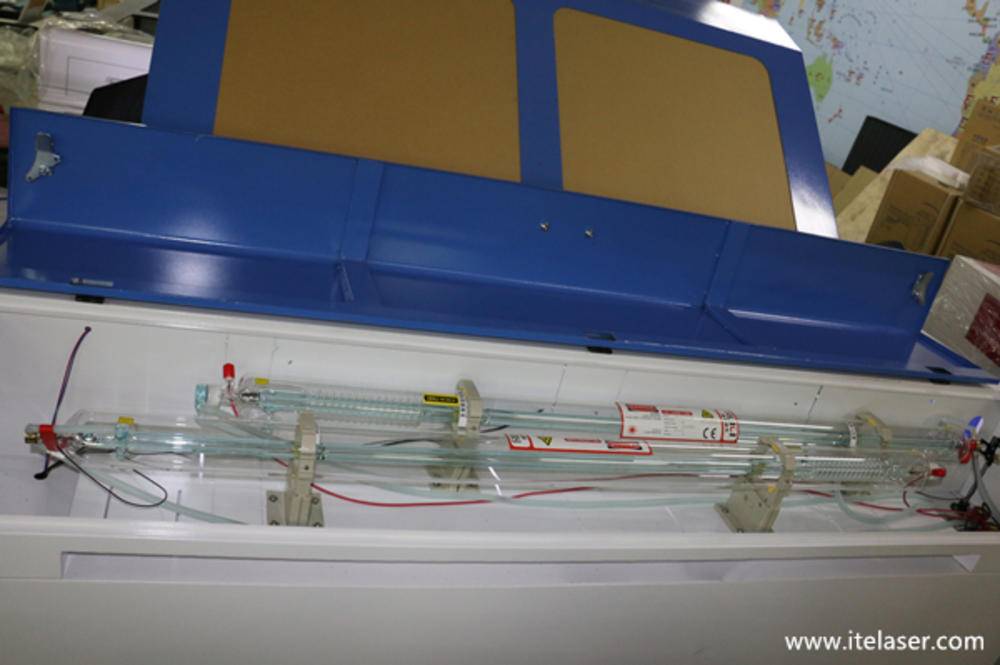

EL MEJOR TUBO LÁSER CON MARK RECI |
|

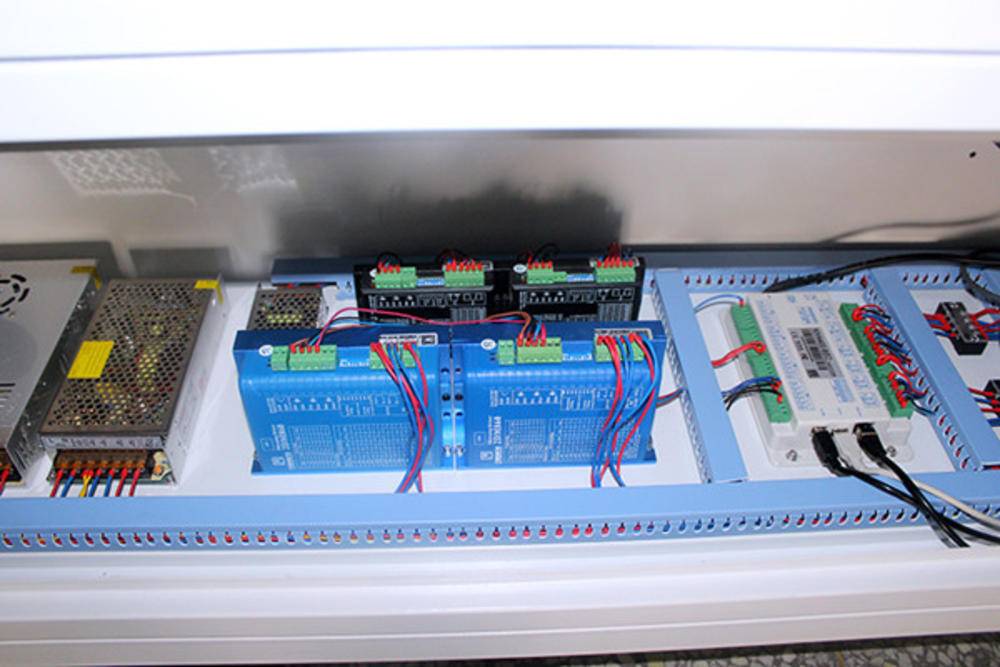

CIRCUITO DE CONTROL DE PCB |
|
|

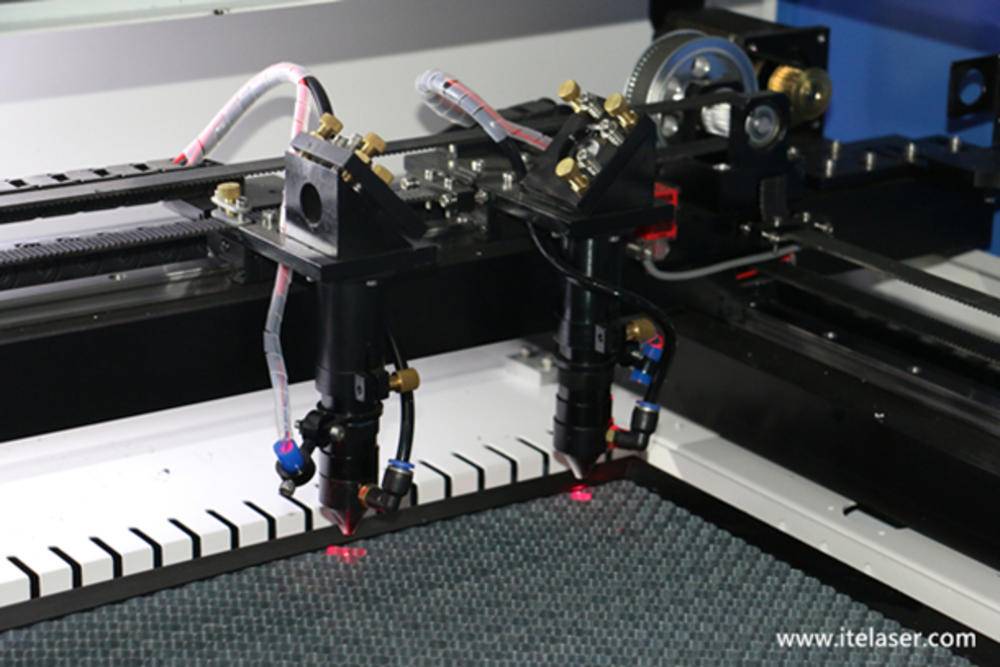

CABEZAL LÁSER CON ENFOQUE AUTOMÁTICO （CABEZALES MOLTI OPCIONALES） |
|

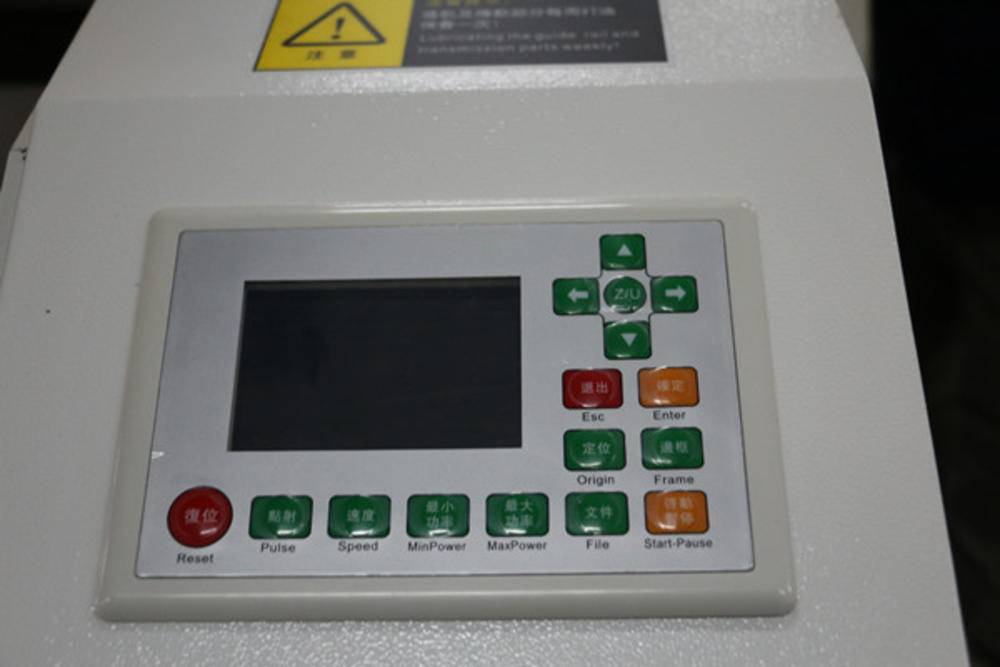

PANEL DE CONTROL FUERA DE LÍNEA |
|
|

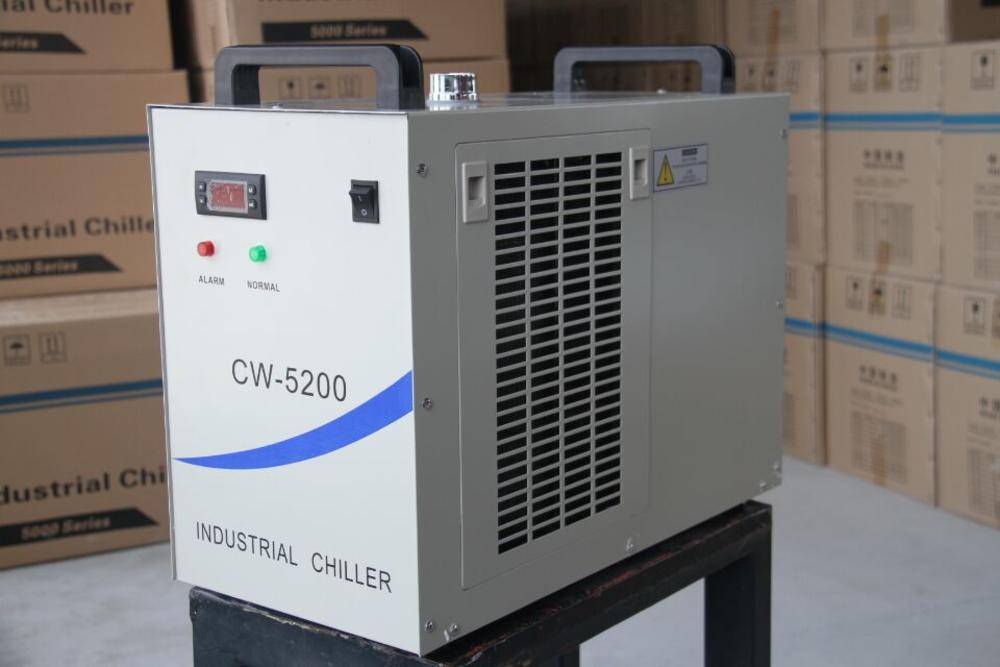

ENFRIADOR DE AGUA |
|

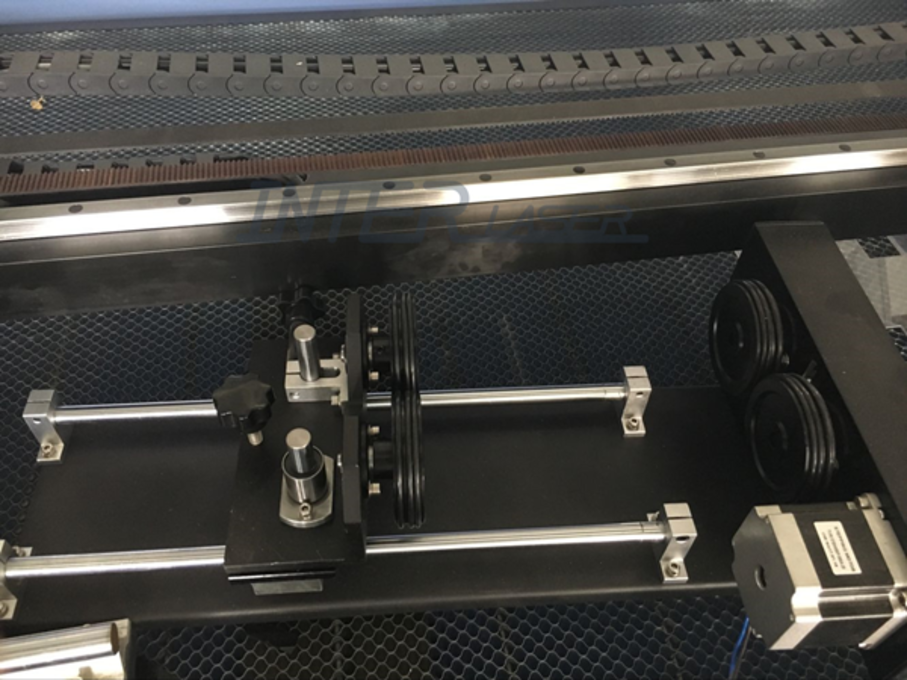

Dispositivo giratorio de tres mandíbulas |
|
